Performance Overview¶

Lab decode numbers from an unlocked CMP 170HX (64 GiB HBM2e, ~1.49 TB/s, PCIe Gen2 x4, 150-300 W) running vLLM, llama.cpp, and SGLang. The source sweep covers 1,603 decode points across 16 models at prompt depths from 1k to 128k. Workload numbers below focus on 16k, 32k, and 64k.

GPU	VRAM	Bandwidth	PCIe	Engines	Power
GA100 sm_80	64 GiB HBM2e	~1.49 TB/s	Gen2 x4	vLLM, llama.cpp, SGLang	150-300 W

Headline numbers¶

Metric	Value
16k coding	228 tok/s (Nemotron-3.5-Lightning-30B-A3B W4A16, vLLM, 1,024-token output, 1.7 s TTFT)
64k longcode	218 tok/s (same model, 2,048-token output, 7.8 s TTFT)
32k batch	1,306 tok/s aggregate (Nemotron W4A16, vLLM, 16 streams at 32k prompts)
At 128k	79% of the 1k-context decode rate (speculation off)

What to run¶

Job	Model	Engine	16k	32k	64k
Interactive	Nemotron-3.5-Lightning-30B-A3B W4A16	vLLM	228 tok/s, 1.7 s TTFT		218 tok/s, 7.8 s TTFT
Fast MoE	Ornith-1.5-35B-A3B W4A16	SGLang	155 tok/s, 1.3 s TTFT		142 tok/s, 7.8 s TTFT
Batch	Qwen3.8-27B W4A16-fast	vLLM	602 tok/s, 32 streams
Batch	Nemotron-3.5-Lightning-30B-A3B W4A16	vLLM		1,306 tok/s, 16 streams	n=32 did not fill (17 running)

Ornith at 32k on SGLang peaks at 270 tok/s with two streams.

Coding and long-context generation¶

Decode and TTFT with speculation off, 300 W, coding-style prompts.

Model	Quant	Engine	16k decode	16k TTFT	64k decode	64k TTFT
Nemotron-3.5-Lightning-30B-A3B-W4A16	W4A16	vLLM	227.7	1.7 s	217.9	7.8 s
Ornith-1.5-35B-A3B-W4A16	W4A16	SGLang	154.8	1.3 s	141.9	7.8 s
Qwen3.6-35B-A3B-FP8	FP8	vLLM	153.8	1.6 s	135.9	9.1 s
Ornith-1.5-35B-A3B-W4A16	W4A16	vLLM	140.2	1.5 s	125.5	8.5 s
Qwen3.8-27B-INT8-W8A16-MTP	INT8-W8A16	vLLM	43.5	8.6 s	39.2	40.5 s
Ornith-1.5-35B-A3B-GGUF	Q5_K_M	llama.cpp	108.9	9.1 s	99.7	42.2 s

Context depth¶

Decode against prompt depth with speculation off. The chart shows the three fastest families from the model ladder. The table is the median retained rate across every model and engine that ran both that depth and the 1k reference.

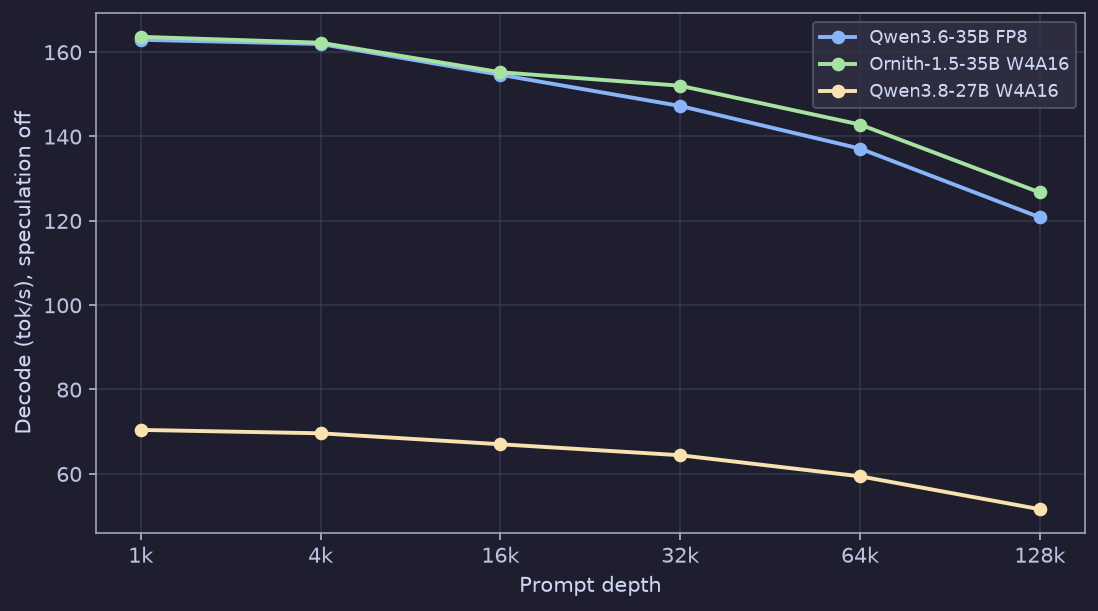

Nospec decode versus prompt depth for Qwen3.6-35B FP8, Ornith-1.5-35B W4A16, and Qwen3.8-27B W4A16 at 1k through 128k.

Figure: Nospec decode versus prompt depth for Qwen3.6-35B FP8, Ornith-1.5-35B W4A16, and Qwen3.8-27B W4A16 at 1k, 4k, 16k, 32k, 64k, and 128k on the unlocked CMP 170HX at 300 W.

Depth	Decode retained vs 1k	Measurements
1,024	100.0%	75
4,096	99.0%	75
16,384	96.2%	75
32,768	93.5%	75
65,536	88.1%	75
131,072	79.4%	56

Median decode is 96.2% of the 1k rate at 16k and 79.4% at 128k.

Power limit¶

Every ladder point was repeated at 300, 250, 200, and 150 W (210 matched measurements).

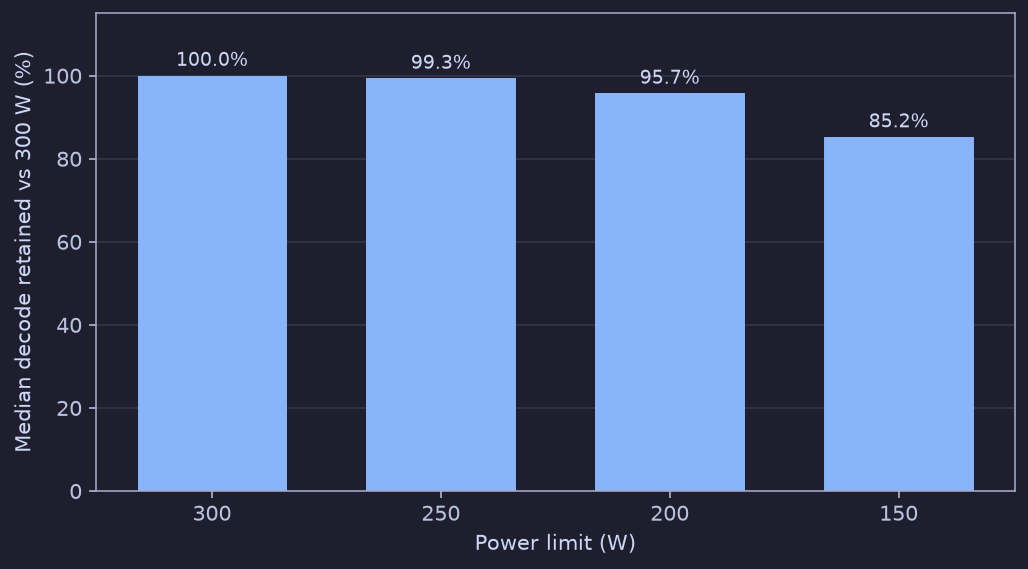

Median decode retained versus the 300 W baseline at 300, 250, 200, and 150 W power limits.

Figure: Median decode retained versus the 300 W baseline at 300 W, 250 W, 200 W, and 150 W on the unlocked CMP 170HX.

Limit	Decode retained	p10-p90	Power budget
300 W	100.0%	100.0-100.0%	100%
250 W	99.3%	96.1-101.3%	83%
200 W	95.7%	89.8-100.1%	67%
150 W	85.2%	77.4-97.6%	50%

250 W keeps 99.3% of the 300 W rate. 200 W keeps 95.7% on two-thirds the power. 150 W keeps 85.2%.

Engines compared¶

Same underlying Ornith-1.5-35B-A3B at ~4-5 bit, same depth, 300 W, speculation off. llama.cpp is GGUF; vLLM and SGLang are compressed-tensors. The weight files are not identical.

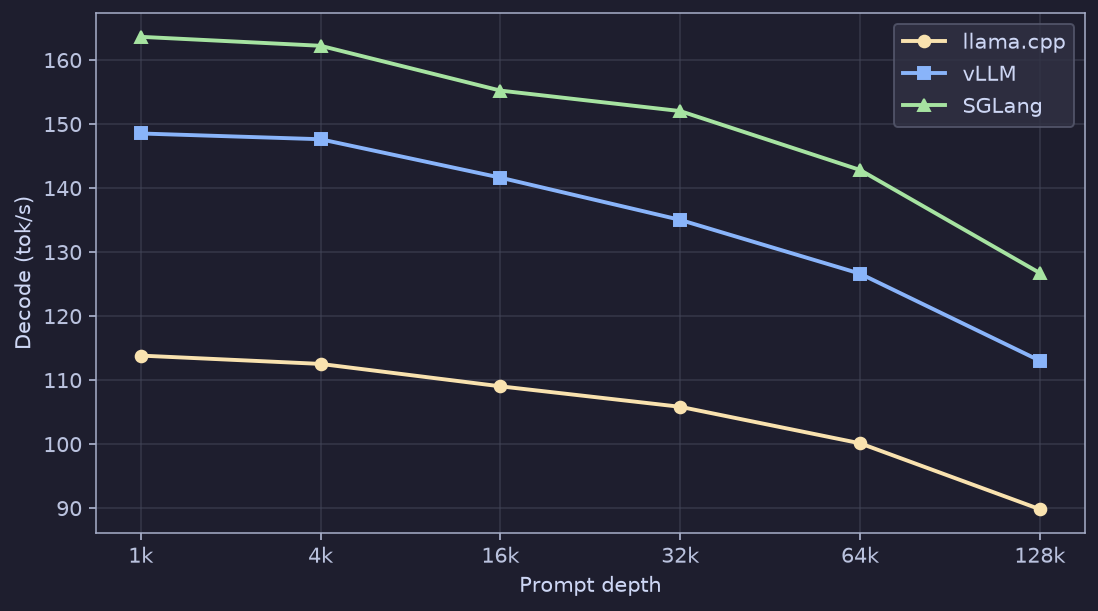

Ornith-1.5-35B ~4 to 5 bit nospec decode across llama.cpp, vLLM, and SGLang from 1k to 128k.

Figure: Ornith-1.5-35B-A3B at roughly 4 to 5 bit, speculation off, decode across llama.cpp, vLLM, and SGLang from 1k to 128k prompt depth.

SGLang leads on the MoE W4A16 path (163.6 tok/s at 1k, 126.7 at 128k). vLLM sits a step behind on the same model. llama.cpp lands around 70% of SGLang on this 35B MoE.

Compact Qwen3.8-27B 4-bit row at 16k for engine orientation: llama.cpp 36.8, vLLM 62.4, SGLang 67.0 tok/s.

Speculative decoding¶

Median gain over the same configuration with speculation off, by depth.

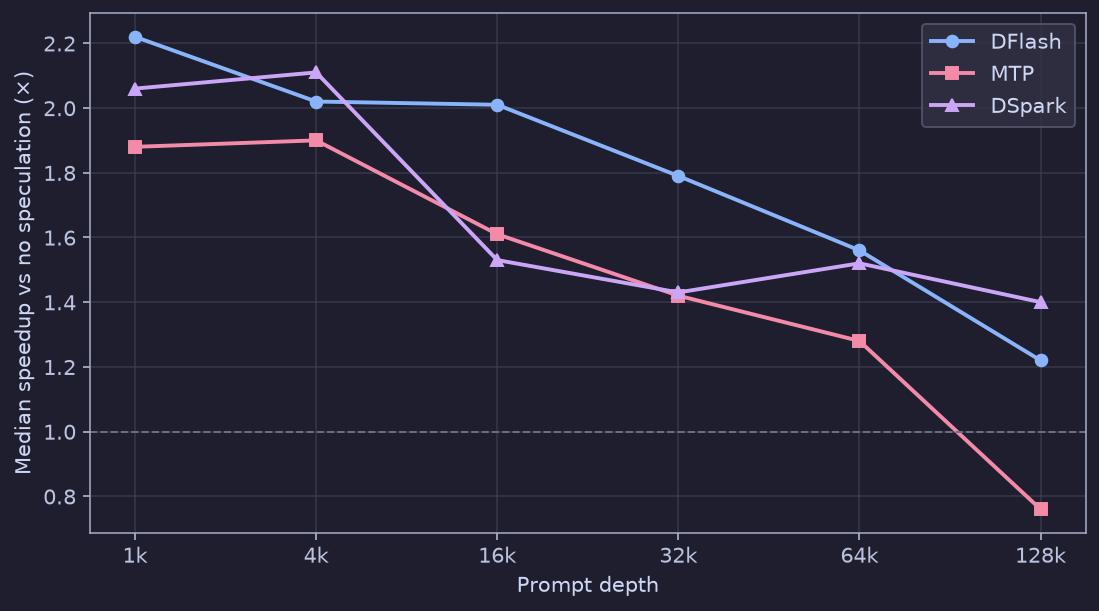

Median speedup for DFlash, MTP, and DSpark versus prompt depth from 1k to 128k.

Figure: Median speculative speedup for DFlash, MTP, and DSpark versus prompt depth from 1k to 128k, relative to the matched nospec run.

Method	1,024	4,096	16,384	32,768	65,536	131,072
DFlash	2.22×	2.02×	2.01×	1.79×	1.56×	1.22×
MTP	1.88×	1.90×	1.61×	1.42×	1.28×	0.76×
DSpark	2.06×	2.11×	1.53×	1.43×	1.52×	1.40×

DFlash is 2.22× at 1k and 1.22× at 128k. MTP is 0.76× at 128k, so the drafter costs more than it returns at that depth.

Concurrent decode (workload)¶

256-token outputs. The long-prompt numbers are the 16k and 32k tables. Ornith-1.5-35B W4A16 reaches 3,168 tok/s at 64 streams and 1k. At 32k the same model peaks at 270 tok/s with two streams.

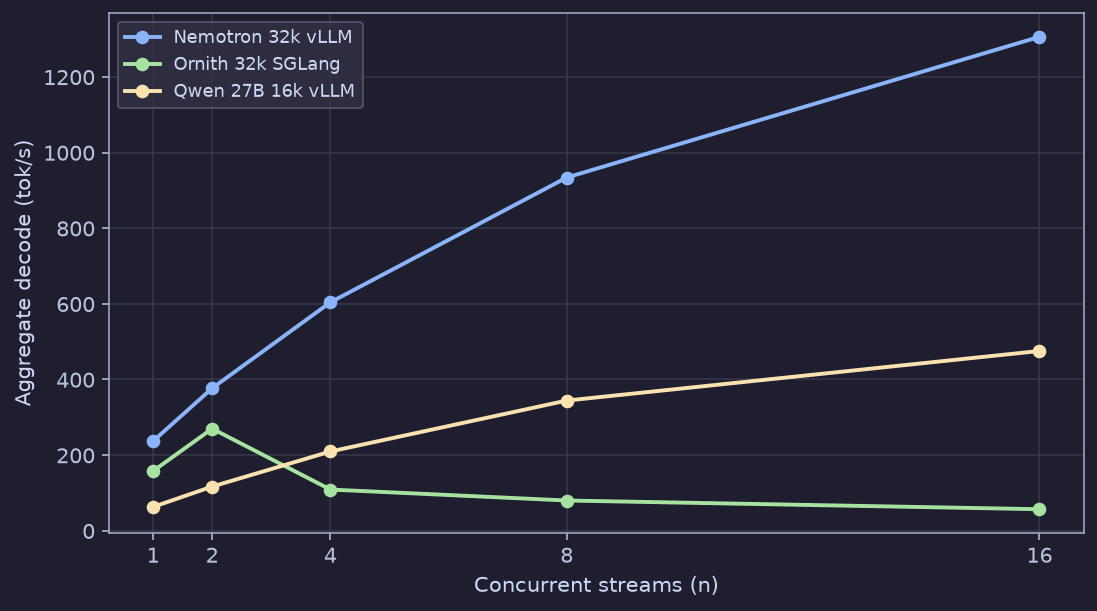

Aggregate decode versus concurrent stream count for Nemotron 32k vLLM, Ornith 32k SGLang, and Qwen 27B 16k vLLM.

Figure: Aggregate decode versus concurrent stream count (n=1..16) for Nemotron at 32k on vLLM, Ornith at 32k on SGLang, and Qwen 27B at 16k on vLLM.

vLLM Nemotron 30B-A3B, 32k context¶

	n=1	n=2	n=4	n=8	n=16
decode agg	237	377	604	934	1,306
per-stream	240	124	65	34	17
TTFT	3.3 s	5.2 s	8.7 s	16.0 s	31.0 s
KV / running	0.6% / 1	1.2% / 2	2.5% / 4	4.9% / 8	9.9% / 16

Ornith 32k on SGLang peaks at 270 tok/s aggregate at n=2, then falls as waiting queues grow. Qwen3.8-27B W4A16-fast at 16k on vLLM reaches 602 tok/s at n=32.

Quality (Qwen3.8-27B, this card)¶

Benchmark	n	bf16	INT8	W4A16	W4A16 vs bf16
HumanEval pass@1	164	0.939	0.939	0.927	−1.3%
HumanEval+ pass@1	164	0.762	0.707	0.677	−11.2%
GSM8K flexible	1,319	0.544	0.531	0.529	−2.8%
GSM8K strict	1,319	0.532	0.532	0.444	−16.4%
IFEval inst strict	541	0.447	0.448	0.446	−0.3%

W4A16 loses 1.3 points of HumanEval pass@1 and 8.7 points of GSM8K strict-match. Flexible-extract, which accepts the number anywhere in the answer, moves about 1.5 points. The GSM8K and HumanEval+ levels come from few-shot completion prompts built for base models, so they sit below a direct chat prompt. The gap between the three quants is the comparison.

Method¶

One CMP 170HX, blower on a temperature-driven curve. Runs without it were discarded.
Identical serving flags per engine, --gpu-memory-utilization 0.85 throughout.
Each ladder ran three times after one discarded warmup pass.
Prompt depths calibrated against the server's own tokenizer.
Output length forced with ignore_eos and min_tokens.
Wall-clock decode is replaced when it disagrees with the server's timing by more than 2×.
PCIe trained at Gen1 x4 (0.84 GB/s) for runs before 2026-09-10, Gen2 x4 (1.69 GB/s) after a reseat. A matched SGLang ladder on the new link reproduced every depth within 0.3%.
Every run writes its prompts and completions to disk.
